Distribution and regulation of sodium in the body fluids

This chapter is relevant to Section I3(ii) of the 2017 CICM Primary Syllabus, which expects the exam candidates to "describe the function, distribution, regulation and physiological importance of sodium, chloride potassium, magnesium, calcium and phosphate ions". For some reason, in the CICM First Part exam this crucially important electrolyte has been rather neglected, with only Question 23 from the second paper of 2014 asking the trainees about its distribution and regulation. The college more than made up for it in the Second Part exam, where hyponatremia is a constant thorn in the candidates' side.

Distribution of sodium

  • Total: 60mmol/kg, of which 30% is non-exchangeable
  • 70% exchangeable: 15% in bone, 10% connective tissue, 45% dissolved in fluid
  • In body fluid: 30% interstitial, 10% plasma, 2.5% transcellular fluid, 2.5% intracellular.
  • Slightly more sodium in the intravascular vs. interstitial fluid (Gibbs-Donnan effect)
  • Apparent measured sodium in the plasma is lower (plasma solids effect)

Regulation of sodium intake

  • Daily dietary intake of ~50-100mmol/day
  • Aldosterone regulates colonic absorption to some minor extent
  • Glucose-coupled and Na+/H+ exchange accounts for most of the intestinal absorption
  • Total stool content 30 mmol/L, = only 3mmol/day is excreted in this way (i.e. almost 100% of dietary sodium is absorbed)

Regulation of intracellular/extracellular balance

  • Cellular membranes have very poor sodium permeability
  • Na+/K+ ATPase maintains high extracellular (135-145 mmol/L) and low intracellular concentration (10-15 mmol/L)

Sodium sequestration in skin and connective tissue

  • Bound to negatively charged residues on glycosaminoglycans
  • Not osomotically active
  • Serves as a buffer to prevent haemodynamic changes from dietary sodium fluctuations

Regulation of sodium and water elimination

  • This is the main mechanism of adjusting extracellular sodium concentration
  • The regulatory mechanisms mainly adjust sodium and water content of the urine by acting on the water and sodium reabsorption in the distal nephron
    • by adjusting glomerular filtration
    • by increasing or decreasing the reabsorption of water (by vasopressin)
    • by increasing or decreasing the reabsorption of sodium (by aldosterone)
  • Angiotensin II (increases reabsorption by increasing Na+/K+ ATPase activity in the proximal tubule, and increases NHE3 activity)
  • Aldosterone (increases ENaC activation in the collecting duct and Na+/K+ ATPase activity in the thick ascending limb)
  • Vasopressin (increases expression of ENaC in the collecting duct and NKCC2 in the thick ascending limb)
  • Catecholamines by increasing NKCC2 expression in the thick ascending limb

Unregulated sources of sodium loss in the ICU

  • Sweat  (in the unacclimatised, sweat contains up to 60mmol/L of sodium)
  • NG drainage (erratic, 10-120 mmol/L)
  • Ileostomy output (~120 mmol/L)
  • Wound drain, pleural drain, burns (same as normal ECF, 135-145 mmol/L)

It would seem as if everybody who has ever held a distinguished lectureship of water and electrolyte homeostasis has at some stage written a sodium paper, which means that there really is no shortage of material to recommend the reader who needs a peer-reviewed alternative to all these unreliable online resources. A good representative would be Skøtt (2003), if people really needed somebody else to filter through their search results, but realistically every published resource seems to contain essentially the same information and all of them would satisfy the requirements of the CICM First Part exam. For something truly comprehensive, Michell's The Clinical Biology of Sodium (1995) is an absolute hoot, and despite its age has held up very well (also apparently there is a second edition from 2014).

Distribution of sodium in the body fluid compartments

The average human body sodium content is usually given as 60mmol/kg. Whenever one sees these sorts of figures about sodium in textbooks, the origin is usually "Anatomy of body water and electrolytes" by Edelman & Leibman (1959).   A 70kg male has about 4200 mmol, or about 92g of sodium. Of this, 70% is “exchangeable” and the rest is locked up in bone crystal, as well as being bound to various molecules in soft tissue, and thereby rendered biologically unavailable. Of this remaining 70%, about 25 is confined to connective tissue and "exchangeable" bone reserves, and about 45% is dissolved in the body fluids.

Body fluid sodium is almost exclusively extracellular; only about 5% of the total sodium in the body water is distributed into the cells. Of the extracellular compartments, its concentration in the intravascular and interstitial fluids is similar but not completely equal.

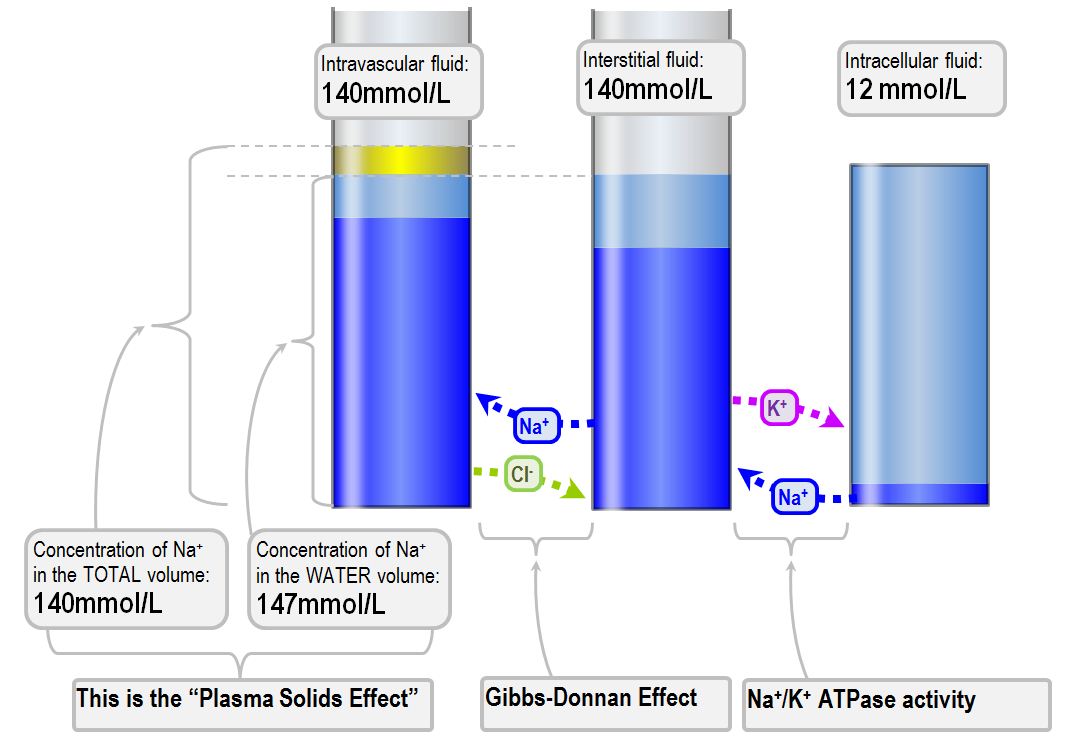

distribution of sodium

The main reason for the extremely unequal distribution of sodium between the intracellular and extracellular fluid is Na+/K+ATPase activity: sodium concentration inside the cell is kept artificially low because it exchanges 3 sodium ions for every 2 potassium. The distribution of sodium between the intravascular and interstitial compartments is a bit more equal, and is the result of two potentially examinable physicochemical effects

  • Gibbs-Donnan Effect: Anionic plasma proteins attract sodium into the plasma. An equilibrium is reached where the sodium concentration in the plasma remains slightly higher, and the chloride concentration in the plasma is slightly lower (chloride ends up being higher in the interstitial fluid). The coefficient which describes this distribution (the "Gibbs-Donnan Factor") is the same for all monovalent cations, and is approximately 0.95 for sodium (i.e. the sodium concentration in the interstitial fluid is 0.95 × the concentration in plasma)
  • The “Plasma Solids Effect”: Plasma is 93% water and 7% solids. When plasma sodium is measured, typically the concentration is not much different than in the interstitial fluid. But there is actually more sodium in the plasma, because it is attracted there by the Gibbs-Donnan effect of all those anionic plasma proteins. Measuring the sodium content of plasma water alone would reveal a substantially higher concentration. This effect also gives rise to the known discrepancy between the sodium measured by the ABG machine and the sodium measured in a typical laboratory analyser.

Regulation of sodium intake

There are three main mechanisms of intestinal sodium transport:

  • Nutrient-coupled absorption is, as the name suggests, tied to the absorption of nutrients - which means that sodium absorption becomes an inevitable consequence of absorbing them (eg. glucose and amino acids).
  • Na+/H+ exchange, mainly by the NHE2, NHE3, and NHE8 family of transmembrane ion exchangers in the colon (where the H+ is then used to drive Cl /HCO3 exchange to absorb chloride)
  • ENaC-mediated transport in the colon, which is controlled by aldosterone to some degree, but which does not get turned off (i.e. these channels can be upregulated to maximise the uptake of sodium, but they cannot be withdrawn completely from the apical membrane).

Sodium absorption occurs at every level, though the mechanisms change.

  • Jejunum:
    • co-transport with glucose (SGLT1) and other nutrients
    • Increased by angiotensin II (Brody, 1999)
  • Ileum:
    • NHE2, NHE3, and NHE8 mediated sodium/chloride/proton/bicarbonate four-way swap
    • Increased by angiotensin II
  • Colon:
    • NHE2, NHE3, and NHE8 mediated sodium/chloride/proton/bicarbonate four-way swap
    • transport via the ENac channel, which is aldosterone-responsive and which can lower the sodium elimination via the stool to near zero (Sandle, 1998).

"Sodium intake is essentially unregulated in humans", snorted the college examiners in their answer to Question 23 from the second paper of 2014. This statement is not entirely true, but is close enough for government work.  Like with potassium, the human intestinal tract has no interest in limiting your access to sodium; but unlike potassium, sodium does not just sneak across the border - it is transported by transcellular mechanisms. In fact the human intestinal tract is a highly efficient sodium-extracting machine. The main reason for this is the need to hold on to precious sodium which is secreted along with all the gastric and intestinal fluid.

The turnover of intestinal sodium vastly exceeds dietary intake. A red-blooded Australian carnivore would normally consume 2500mg (110mmol) of sodium per day, which is about 50% more then the AHA would prefer. During the same day, his intestine would churn out approximately nine litres of various weird digestive juices, the content of which is lovingly detailed by various physiology authors. Without nauseating the reader with the stomach-churning detail from Spiller (1994), it will suffice to note that, as a part of this massive fluid load, the ileum receives about 400mmol of sodium per day, and reabsorbs half of it, with the colon taking care of the rest. As the result, normal faecal sodium content is actually rather low - about 30 mmol/L (for a contrasting comparison, there's a shitload of potassium, 75mmol/L). In fact a faecal sodium higher than 60mmol/L  is enough to suspect secretory diarrhoea. Now, one must be reminded that we do not all produce litres of stool per day, nor is the water content of stool very high. Under normal circumstances, perhaps 100ml of water is eliminated along with stool every day, which means to the total daily sodium loss is about 3 mmol.

So, in summary, the CICM examiners were basically correct: there is a massive capacity for sodium reabsorption in the gut, and even if you double the normal salt intake to 220 mmol/day, it will barely compare to the average workload of the intestinal sodium transport mechanisms, and all of it will basically end up absorbed, regulation be damned. All aldosterone and angiotensin can do is decrease the faecal sodium loss from 3 mmol/day down to 0 mmol/day. To borrow a turn of phrase from Michell (1995),

"The gut is not conventionally acknowledged to have an important role in the regulation of mammalian sodium balance, being over-shadowed by the kidney"

Regulation of renal sodium elimination

Extracellular sodium regulation is mainly a renal thing, where elimination of sodium and/or water can be rapidly and massively adjusted to produce rather abrupt changes to the extracellular sodium content. Anybody who has ever managed a patient with psychogenic polydipsia will recall their infinite capacity to surprise their endocrinologist with pons-demyelinating feats of sodium self-correction. The CICM examiners expected some detailed knowledge of this particular area. "Candidates needed to present the renal handling of Na including hormonal control and present factual knowledge about the level of absorption and GFR effects to attain a pass mark", they grated in their response to Question 23 from the second paper of 2014. What they actually meant by the cryptic terms "level of absorption" and "GFR effects " is of course impossible to determine, and because they are anonymous there's no accountability. However, we can guess what should have been expected by wise elders, on the basis of what we know to be important. So, here is some self-plagiarism, summarising the main points from the chapter on the renal handling of sodium:

  • Sodium is freely filtered in the glomerulus.
  • 65% is then reabsorbed in the proximal tubule:
    • The reabsorption is driven by a concentration gradient which is created by the action of basolateral Na+/K+ ATPase
    • Most of the sodium is reabsorbed by the NHE3 sodium-hydrogen exchanger
    • Other transport proteins include SGLT2, phosphate co-transporter Npt2a and multiple organic anion co-transporters
  • None is reabsorbed in the thin descending limb:
    • it is impermeable to sodium
  • Some minimal amount is reabsorbed in the thin ascending limb
    • it is permeable to ions, but not to water
    • Some sodium is reabsorbed passively here
  • 25% is reabsorbed in the thick ascending limb:
    • Most of this is by the frusemide-sensitive NKCC2 co-transporter
  • 5-10% is reabsorbed in the distal convoluted tubule:
    • Most of this is by the thiazide-sensitive NCC co-transporter
    • This step is load-sensitive, i.e. reabsorption increases whenever there is increased sodium delivery to this segment
  • 2% is reabsorbed in the collecting duct:
    • Most of this is passive, via the amiloride-sensitive ENaC channel

Regulation of sodium reabsorption:

  • Angiotensin II (increases reabsorption by increasing Na+/K+ ATPase activity in the proximal tubule, and increases NHE3 activity)
  • Aldosterone (increases ENaC activation in the collecting duct and Na+/K+ ATPase activity in the thick ascending limb)
  • Vasopressin (increases expression of ENaC in the collecting duct and NKCC2 in the thick ascending limb)
  • Catecholamines by increasing NKCC2 expression in the thick ascending limb

Loss of sodium through sweat

Without digressing overmuch on the properties and contents of sweat, it will suffice to say that, in the unacclimatised subject sweating uncomfortably, sweat can account for a surprisingly large amount of sodium loss. Sweat may contain as much as 50-60 mmol/L of sodium, and a maximum perspiration water loss of about 11-12 litres per day is thought to be maximal (Robinson & Robinson, 1954), which means that theoretically it should be possible to lose 720mmol/day of sodium in the form of sweat. This is completely outside the realms of normal human experience, but people do tend to do weird things, and after they are found they tend to come to the ICU, which means intensive care trainees should probably know about this sort of stuff.

Regulation of sodium movement across the cell membrane

The concentration of sodium in the extracellular fluid is mainly regulated by the elimination of sodium and the intake of water. There is really no avenue to adjust the extracellular sodium concentration by moving it in or out of cells, at least not by a clinically significant amount. Or, rather, when sodium does move into cells, it does so rapidly, even explosively, and with the intention of depolarising the membrane to create an action potential. The uneven balance of intracellular and extracellular concentration is almost entirely the work of Na+/K+ ATPase, which pumps tirelessly in the basement of the cell to create useful Gibbs-Donnan phenomena.

So: unlike with potassium, which shifts harmlessly into cells under the direction of insulin each time you get a dietary load, we cannot simply take a pile of sodium and hide it under the carpet until it is convenient to excrete it later. Theoretically, it follows that if you ingest 140mmol of sodium, it should all end up in the extracellular fluid compartment should expand by 1000ml. That's not a huge amount of sodium (3200mg), considering the sort of instant noodles that sustained the author during medical school contain 4800mg (209 mmol) of sodium per packet, and it was totally routine to have two at a time. Why, then, did nobody ever notice their extracellular fluid volume increase by three litres after this sort of lunch?

Skin as an extracellular reservoir for sodium

So; when Heer et al (2000) convinced healthy volunteers to ingest up to 550 mEq/day of sodium chloride (i.e. 225mmol/day of sodium), the expectation was that they would swell hideously with fluid overload. Unexpectedly, the plasma volume increased only trivially (by about 350ml) and the total body water barely budged. At the same time, though their renal clearance of sodium increased, it did not increase enough, and the subjects began to develop a positive cumulative sodium balance - of several grams, in fact.

This extra sodium mainly went into their skin.  The skin, you may be surprised to learn, is a massive and highly flexible reservoir where huge amounts of osmotically inactive sodium can be stored. It lives there in a complex with glycosaminoglycans,  linear polysaccharide chains of variable length which bristle with carboxyl and sulphate functional groups. There's enough negative charge there to bind plenty of sodium, and it sure does this with great avidity. The capacity is massive, and none of it has any osmotic activity whatsoever, as technically the number of moles has remained unchanged - all of the sodium disappears into this glycosaminoglycan void. Amazed, Titze et al (2001) were able to create ridiculously sodium-enriched rats with a skin sodium content 180–190 mmol/L higher than usual. The same is seen in humans (Selvarajah et al, 2017). This salt reservoir can be mobilised in periods of sodium deprivation, and the exact mechanics remain obscure - for example, does it react to high sodium concentrations by sequestering it, or does it proactively remove sodium as it begins to rise?

Plenty of PhDs in there somewhere.

References

Skøtt, Ole. "Body sodium and volume homeostasis." American Journal of Physiology-Regulatory, Integrative and Comparative Physiology 285.1 (2003): R14-R18.

Heer, Martina. "Sodium regulation in the human body." Current Sports Medicine Reports 7.4 (2008): S3-S6.

Bie, Peter. "Mechanisms of sodium balance: total body sodium, surrogate variables, and renal sodium excretion." American Journal of Physiology-Regulatory, Integrative and Comparative Physiology 315.5 (2018): R945-R962.

Edelman, I. S., and J. Leibman. "Anatomy of body water and electrolytes." The American journal of medicine 27.2 (1959): 256-277.

Widdowson, Elsie M., E. A. McCance, and Christine M. Spray. "The chemical composition of the human body." Clinical Science 10 (1951): 113-125.

ICRP. Reference man: anatomical, physiological and metabolic characteristics. 1975.

Forbes, R. M, A. R. Cooper, and H. H. Mitchell. "The composition of the adult human body as determined by chemical analysis." Journal of Biological Chemistry 203 (1953): 359-366.

Forbes, R. M., H. H. Mitchell, and A. R. Cooper. "Further studies on the gross composition and mineral elements of the adult human body." Journal of Biological Chemistry 223 (1956): 969-975.

Kiela, Pawel R., and Fayez K. Ghishan. "Physiology of intestinal absorption and secretion." Best practice & research Clinical gastroenterology 30.2 (2016): 145-159.

Sandle, G. I. "Salt and water absorption in the human colon: a modern appraisal." Gut 43.2 (1998): 294-299.

Michell, A. R. The clinical biology of sodium: the physiology and pathophysiology of sodium in mammals. Elsevier, 2014.

Spiller, R. C. "Intestinal absorptive function." Gut 35.1 Suppl (1994): S5-S9.

Fordtran, John S., Floyd C. Rector, and Norman W. Carter. "The mechanisms of sodium absorption in the human small intestine." The Journal of clinical investigation 47.4 (1968): 884-900.

Brody, T. "Inorganic nutrients." Nutrition biochemistry (1999): 761-794.

Heer, Martina, et al. "High dietary sodium chloride consumption may not induce body fluid retention in humans." American Journal of Physiology-Renal Physiology 278.4 (2000): F585-F595.

Davis, Daniel P., et al. "Exercise-associated hyponatremia in marathon runners: a two-year experience." The Journal of emergency medicine 21.1 (2001): 47-57.

Titze, Jens, et al. "Osmotically inactive skin Na+ storage in rats." American Journal of Physiology-Renal Physiology 285.6 (2003): F1108-F1117.

Selvarajah, Viknesh, et al. "Novel mechanism for buffering dietary salt in humans: effects of salt loading on skin sodium, vascular endothelial growth factor C, and blood pressure." Hypertension 70.5 (2017): 930-937.

Selvarajah, Viknesh, et al. "Skin sodium and hypertension: a paradigm shift?." Current hypertension reports 20.11 (2018): 1-8.
