This chapter is vaguely relevant to parts from Section B(v) of the 2017 CICM Primary Syllabus, which expects the exam candidate to "explain the concepts of intravenous bolus and infusion kinetics". Loading doses and maintenance doses have some practical relevance to these concepts, and the design of a dosing regimen requires some understanding of them. However, neither the new 2017 syllabus nor the old 2014 syllabus included anything specific about dose calculations in their list of learning objectives or expected abilities. It therefore seemed all the more unfair when Question 10 from the first paper of 2009 asked the candidates to "describe the calculations involved in determining the loading dose and maintenance dose for an intravenous infusion". The pass rate was 30%; "main points for a pass included the equations for determining the loading and maintenance doses." To address this injustice, this chapter will present those equations up front before degenerating into characteristic gibberish.

Thus:

For IV drugs given by infusion,

  • Dose rate (mg/hr) = dose (mg) divided by dosing interval (hrs)
  • Maintenance dose rate (mg/hr) = desired peak concentration (mg/L) × clearance (L/hr)
  • Loading dose = desired peak concentration (mg/L) × volume of distribution (L)

For drugs not given IV, these doses need to be divided by the bioavailability.

Apart from equations, "points were awarded for explaining the rationale for giving a loading dose and for relevant diagrams", as well as examples of drugs. All of this is offered below.

Even though Birkett's 1996 article for the Australian Prescriber is virtually identical to the 2009 book chapter (and is available for free), one might still for some reason want to read other things. This is probably a waste of time if it is happening on the night before the exam. However, in the spirit of encouraging bad behaviour, some alternative peer-reviewed resources can be suggested. One could do worse than the 1982 Dosage regimen design by DeVane and Jusko. There are also decent articles by Williams (1992) and Thompson (1992)  Neither is available as free text, and so one would need to engage in some level of institutional access whoring or some sort of darkweb shenanigans to get hold of them. Freely available articles include Thomson (2004) and Mehvar (1998).

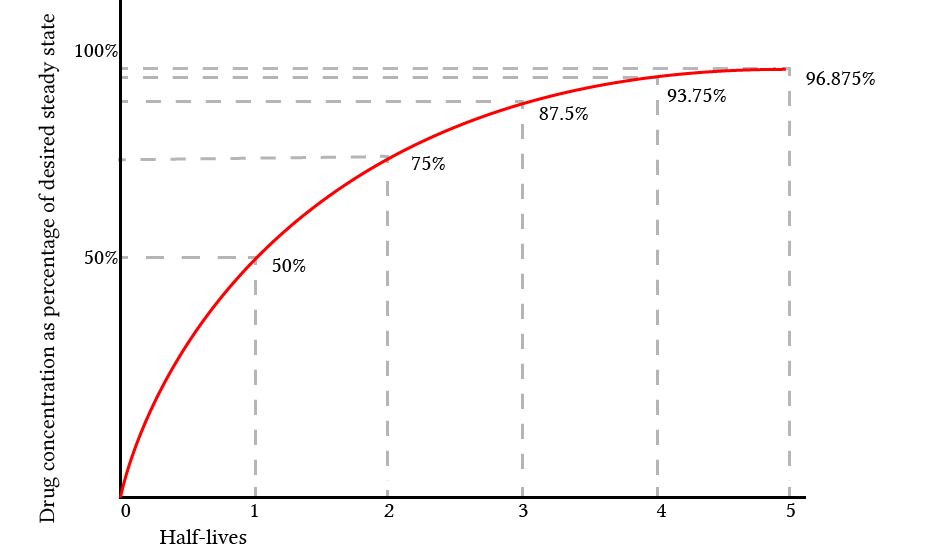

Maintenance dose in continuous infusion

This is pretty much the simplest model of maintenance dosing When it is given by continuous infusion the drug accumulates gradually. The steady state concentration is determined only by two major factors, the dose rate and the clearance rate. Steady state is achieved when clearance rate and dose rate are equal, and the time taken to achieve this  steady state in continuous infusion is 3-5 half lives.

Maintenance dose in continuous infusion

As discussed in the chapter on half-life, this is because increasing drug concentration usually results in a more rapid rate of elimination, and eventually the plasma drug concentration reaches a point at which the dose rate and the clearance rate are equal.

Maintenance dose in regular dosing

In regular doses, drug concentration achieves a steady state in steps, but the end result is the same - the  plasma drug concentration reaches a point at which the dose rate and the clearance rate are equal after about five half-lives.

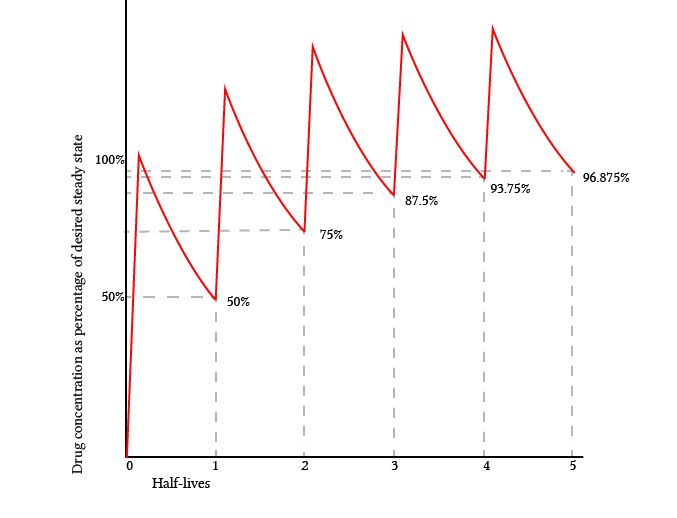

maintenance dose in intermittent dosing without loading dose

This is probably ok for a drug which is expected to have some sort of long-term effect, but if you are waiting for something critically and immediately important (pain relief, control of AF etc) you probably can't afford to spend five days patiently watching the concentration increase. This is where the loading dose comes in.

Loading dose

A loading dose rapidly achieves the peak concentration necessary to compete with clearance, so that the desired effect is achieved and maintained sooner.

loading dose in intermittent dosing

Loading dose is calculated by multiplying the desired peak concentration by the volume of distribution of the drug. If the dosing interval is the same as the half-life of the drug, the loading dose should be twice the maintenance dose (i.e. after one half-life the drug concentration will have dropped by half, and "topping up" with another maintenance dose will bring it back to the same peak concentration as the loading dose).

In the context of infusion, the same sort of kinetics are observed. The concentration/time graph resembles some mutant fusion of the bolus graph and the continuous infusion graph. Steady state and the therapeutic effect are achieved much sooner.

Pharmacokinetics of loading dose followed by infusion

There are some practical problems with using a loading dose. If a drug has a high volume of distribution, the loading dose to achieve steady-state concentration may be impractically large. Birkett et al (2009) gives the example of phenobarbitone, where the loading dose would be a lethal 1.5g.

Examples of drug pharmacokinetics using infusions and intermittent IV doses

As the examiners expect graphs and examples, it might be helpful to illustrate the abovediscussed points using something which is a combination of both. This is a graph of vancomycin concentrations, comparing intermittent dosing with continuous infusion.

vancomycin infusion and intermittent dosing from

The graph comes from Wysocki et al (2000); they targeted trough levels of 15mg/L and maintenance levels of 20-25mg/L. Observe the high peak following the loading dose, followed by the gradual approach to steady state.

Maintenance and loading doses in oral administration

Giving the drug orally has two main effects on maintenance dose calculations:

  • All the loading doses and maintenance doses have to be adjuested to bioavailability (i.e. divided by the bioavailability fraction) - this increases the required dose if the drug is not 100% bioavailable
  • The slower intestinal absorption of the drug  has a "smoothing" effect on the peaks of concentration, which has the effect of decreasing concentration-dependent adverse effects.

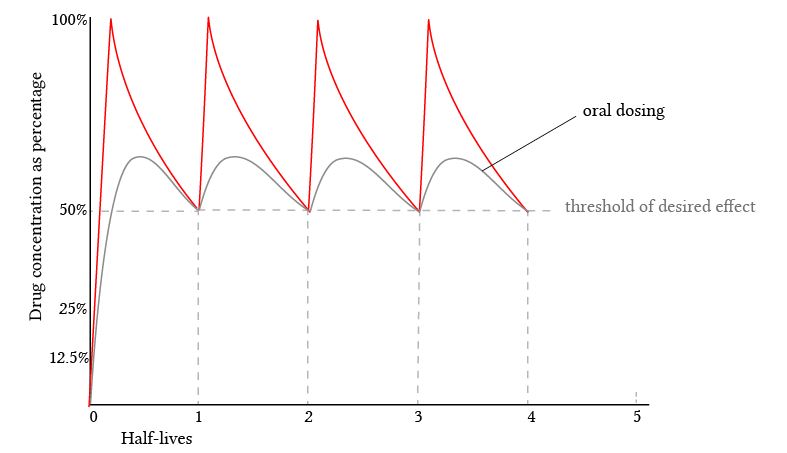

smoothing of the dose peaks with oral dosing

Factors which influence the dosing interval

The dosing interval clearly plays some sort of role in the pharmacokinetics of intermittent dosing. The major factors involved in deciding on how often one should dose the drugs should be determined by the following factors:

  • Elimination half-life:  most of the time, one does not wait for all of the drug to be eliminated before the next dose, as it is important to maintain a certain level of plasma concentration.
  • Therapeutic index: in other words, how widely would you allow the drug concentration to fluctuate between doses?
  • Convenience: how reasonable is it to expect the patient to self-administer a drug every fifteen minutes? Who cares about the elegant pharmacokinetics; the compliance will be poor and a therapeutic mean plasma concentration will not be maintained

The longer the dosing interval in proportion to half-life, the greater the fluctuation of concentration between doses. Consider gentamicin. The peak level is very high, and the trough is very low in once daily dosing. Fortunately this favours gentamicin, which has a potent post-antibiotic effect. Other drugs will be different. If the therapeutic index is narrow, dosing the drug too infrequently will give rise to alternation periods of toxicity and ineffectiveness.

Generally speaking, for most drugs, the dosing interval is approximately one half life.

Influence of critical illness on maintenance dose and loading dose calculation

Question 10 from the first paper of 2009  asked, "What factors may affect these values [calculations involved in determining the loading dose and maintenance dose for an intravenous infusion] in the critically ill? In order to supply the exam candidates with a pre-chewed half digested answer, these are listed below. In short, maintenance dose and loading dose calculations are mainly dependent on clearance rate, volume of distribution and bioavailability.

Factors which Influence Maintenance Dose and Loading Dose
Factor involved Effects of critical illness  Impact on loading dose and maintenance dose

Volume of distribution

Increased Vd (due to fluid overload)

Increased loading dose and maintenance dose or dose rate

Decreased Vd (due to hypovolaemia)

Decreased loading dose and maintenance dose or dose rate



Clearance

Decreased renal clearance (due to decreased renal blood flow or renal parenchymal damage)  ​​​​​​

Decreased maintenance dose or dose rate; also possibly increased dosing interval.

Loading dose could remain unchanged

Increased renal clearance (hyperdynamic states, eg. early sepsis)

Increased maintenance dose or dose rate; also possibly dencreased dosing interval

Loading dose could remain unchanged

Decreased hepatic clearance (decreased hepatic blood flow or inhibited liver enzyme function)

Decreased maintenance dose or dose rate; also possibly increased dosing interval.

IV loading dose could remain unchanged

Oral loading dose would need to be decreased to accommodate for the decreased first pass metabolism



Increased hepatic clearance (increased hepatic blood flow or hepatic parenchymal clearance)

Increased maintenance dose or dose rate; also possibly decreased dosing interval.

IV loading dose could remain unchanged

Oral loading dose would need to be increased to accommodate for the increased first pass metabolism

Bioavailability

Decreased protein binding (due to lower levels of protein)

Increased free unbound fraction of the drug, which gives rise to increased clearance and increased drug effect.

Decreased gut absorption (due to decreased splanchnic blood flow and/or decreased peristalsis)

Variable and inconsistent absorption of an otherwise correctly calculated oral loading dose



Competition for protein binding (eg. where bilirubin competes for albumin binding sites)

Increased free unbound fraction of the drug

The college examiners helpfully reminded us that "examples of drugs illustrating an understanding of pharmacokinetics attracted extra marks". To use the official textbook examples seems appropriate, because how could that ever be wrong. In addition to these, the excellent article by Blot et al (2014) uses some antimicrobial agents to illustrate critical illness-related changes in pharmacokinetics.

The following memorable illustrative examples should be committed to storage and then regurgitated upon the examiners:

  • Theophylline:  a drug which is dosed every half-life (300mg every 8 hours), which is equivalent to a dose rate of 37.5mg/hr, which is in turn equivalent to an infusion rate of 37.5mg/hr.
  • Phenobarbitone:  a drug with a vast volume of distribution, where the loading dose would be massive and toxic
  • Morphine:  a drug which is poorly orally bioavailable; an example of how the oral loading dose is affected by bioavailability (i.e.
  • Phenytoin: a drug which is highly protein-bound, and which is highly affected by the low plasma albumin associated with critical illness (thus, with low total drug levels the levels of  free unbound drug may still be therapeutic)
  • Gentamicin: a drug which is cleared rapidly by the kidneys, a clearance which is significantly affected by poor renal function. It is an example of how the loading or maintenance dose should remain unchanged; instead the dosing interval should be extended.
  • Vancomycin and β-lactams: examples of drugs which are subject to increased renal clearance in the context of hyperdynamic circulatory states, for example in early sepsis.
