The p50 value of a blood gas sample

This chapter is most relevant to Section F7(ii) from the 2017 CICM Primary Syllabus, which expects the exam candidates to be able to "explain the oxyhaemoglobin dissociation curve and factors that may alter it". As the change in p50 is the way one defines and describes factors that may alter it, a discussion of the p50 value was felt to be useful here.  This topic has never appeared in the CICM First Part exam, and has only ever appeared once in Question 6.2 from the second fellowship paper of 2010.

In summary:

  • This is the partial pressure of oxygen required to achieve 50% haemoglobin saturation.
  • In the ABG machine, this value is extrapolated from the measured PaO2 and sO2.
  • It is represented as p50, in contrast to the p50(st) which is an idealised value calculated from the measured PaO2 at a standard set of conditions (pH 7.40, pCO2 40mmHg, and assuming the absence of dyshaemoglobins).
  • The normal p50 value is 24-28 mmHg

The oxygen-hemoglobin dissociation curve represents the affinity of hemoglobin for oxygen. The p50 value represents a mid-point in this curve, and gives us information regarding that affinity.

In the adult, the normal p50 should be 24-28mmHg.

The venerable Kerry Brandis gives 26.6 mmHg as the normal value for adult humans.

Extrapolation of the p50 value using ABG machine algorithms

In brief, the process involves making a model of the oxyhaemoglobin dissociation curve on the basis of the measured variables, , and then calculating what the PaO2would be at sO2 of 50%.

It is more difficult than it sounds. The reference manual for the local ABG analyser is a goldmine of information, and spells this out quite clearly. However, little physiological explanation is available there (it is after all an operations manual, not a physiology textbook). Thus, one turns to Ole Siggaard-Andersen's site which is the canonic resource for this topic, for many reasons but chiefly because he is the original author for many of the seminal papers and key equations described below. Therefore, to do this topic justice, the reader is directed to www.siggaard-andersen.dk.

The tanh equation

This equation describes a hyperbolic tangent function, which acts as the mathematical model for the oxygen-haemoglobin dissociation curve. It was decribed in a seminal 1984 paper by both the Siggaard-Andersens as well as Wimberley and Gothgen.

In this model, the x and y coordinates of points along the curve are derived logarithmically from s and p, which are combined values. s is the combined saturation of oxygen and carbon monoxide, and p is the combined partial pressure of oxygen and carbon monoxide. This is done to account for the fact that haemoglobin binds carbon monoxide as well as (better than!) oxygen, and the presence of any carboxyhaemoglobin will alter the shape of the dissociation curve, making it more hyperbolic.

The equation has numerous components, and the components have subcomponents, and so on.

If one were a crazy person, one would represent the relationship in the following manner:

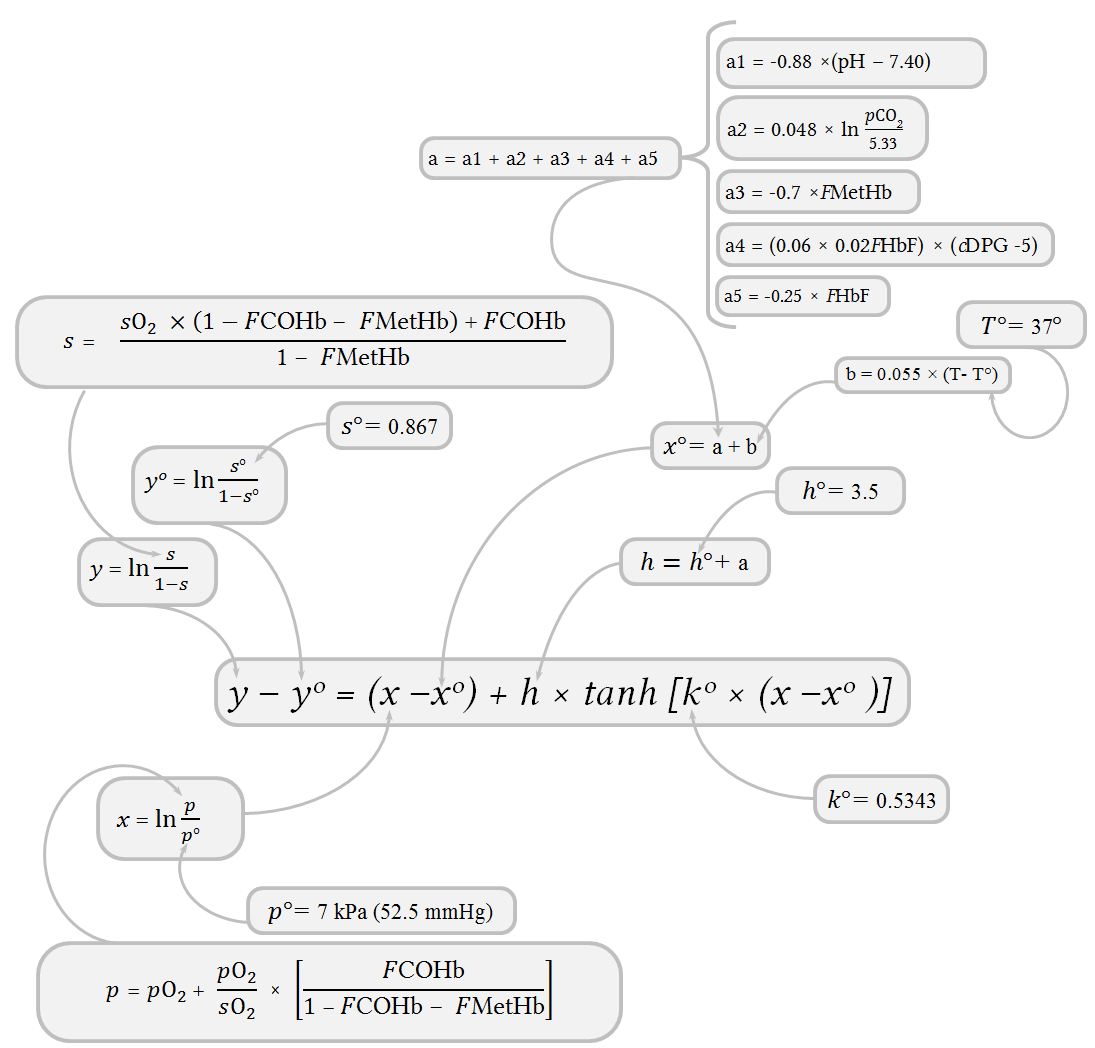

expanded tanh equation for calculation of oxygen-haemoglobin dissociation curve

Those readers who do not intend to go on to a rich fulfilling career of designing ABG machines are unlikely to benefit from an indepth discussion of this mathematical quagmire.  People who do wish to go around designing ABG machines would not be reading this site; likely they would be leafing absent-mindedly though Pure and Applied Chemistry.  Therefore I can generate such ridiculous diagrams with the liberating expectation that nobody would ever try to genuinely learn anything from them.

In brief, the variables in the monstrous scrawl above are as follows:

  • The x and y coordinates are derived logarithmically from s (the combined saturation of oxygen and carbon monoxide), and p ( the combined partial pressure of oxygen and carbon monoxide).
    • s and p are derived from the measured variables - these are the solid foundations which validate the calculated curve.
  • The x° and coordinates represent the point of symmetry of the curve.
    • x° is particularly interesting - it is the magnitude of the left and right shift, determined by the Bohr effects (i.e. the pH, pCO2, dyshemoglobin levels and the concentration of 2,3-DPG) as well as the temperature.
    • Apart from a1 to a5, x° is also determined by a6, an additional shift determined
  • and are constants.

Calculating the shift of the oxyhemoglobin dissociation curve

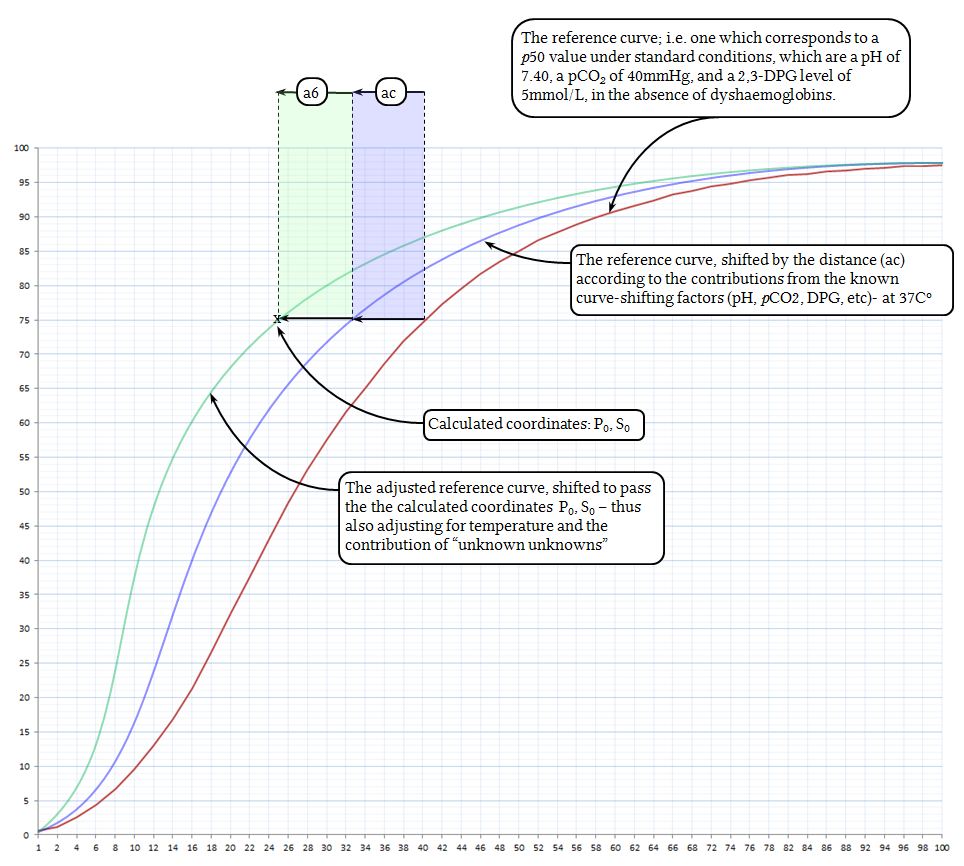

First, one needs to select an oxyhaemoglobin dissociation curve to shift. The diagram below uses one which was generated using Severinghaus' classical data . Then, one needs to decise how far horisontally it has to be shifted, according to the combined effect of all the usual influences. Lastly, one calculates the position of a point, described by a set of coordinates (P0, S0), and forces the curve to pass through that point.

calculating the shift of the oxyhaemoglobin dissociation curve

In the diagram above, the Radiometer variables (ac and a6) are used to describe the magnitude of the shift. (ac) can be though to represent "all causes", as in "The calculation of the combined effect on the ODC position at 37 °C of all known causes for displacement" . The (a6) is even more prosaic; its the 6th component of (ac), because ac = a1 + a2 + a3 + a4 + a5.

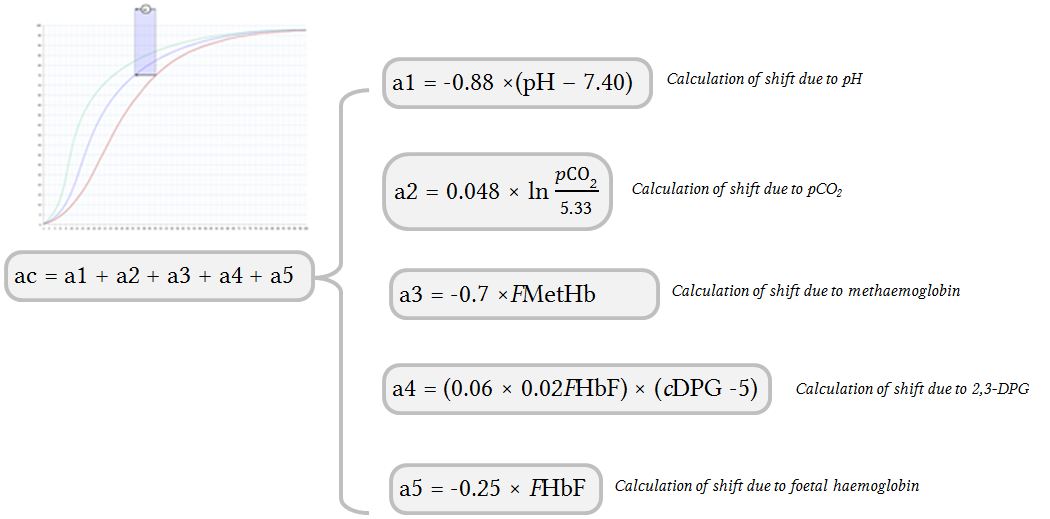

equation 1 for calculating the shift of the oxyhaemoglobin dissociation curve

But wait, you say. The (ac) value is calculated with the use of cDPG! But, the ABG machine does not measure DPG. Where did this value come from?

This is unclear. Certainly the reference manual is silent on this matter. cDPG is estimated elsewhere to be 5mmol/L, which would yield an unsatisfying (a4= 0) result (i.e. why even include it).

It seems that it may be possible to extrapolate a cDPG level from other findings. For one, it appears to be present in normal red cells at about 0.75:1 molar concentration ratio to haemoglobin. Additionally, published work by Samja et al (1981) has demonstrated that from empirical measurements a nomogram can be constructed, which allows one to calculate a cDPG level from known pO2, pCO2 pH and p50 values. In short, methods to estimate this variable are available, but it is uncertain as to how this variable is derived in this specific situation, within the mysterious innards of the ABL800.

Siggaard-Andersen's site contains a brief entry on 2,3-DPG. There, an equation is offered to calculate the cDPG value using the p50(st). The reasoning is that by supplying all the left-shift parameters into the tanh equation, one is able to exclude everything but the cDPG and dyshaemoglobin from the equation, and because dyshaemoglobin is a measured parameter, one can be reasonably confident that the magnitude of the remaining left shift is due to cDPG alone.

Similarly, the FHbF (foetal haemoglobin) is a measured parameter (by absorption spectrophotometry, like the other haemoglobin species) but not all ABG machines report this value, and thus it is unclear what happens in that case (is it ignored?)

Anyway.

One has some variables to plug in, and some sort of (ac) is calculated, which is the shift of the curve at 37°C. Now, one must calculate the shift of the curve to fit to the position of a point, defined as (P0, S0).

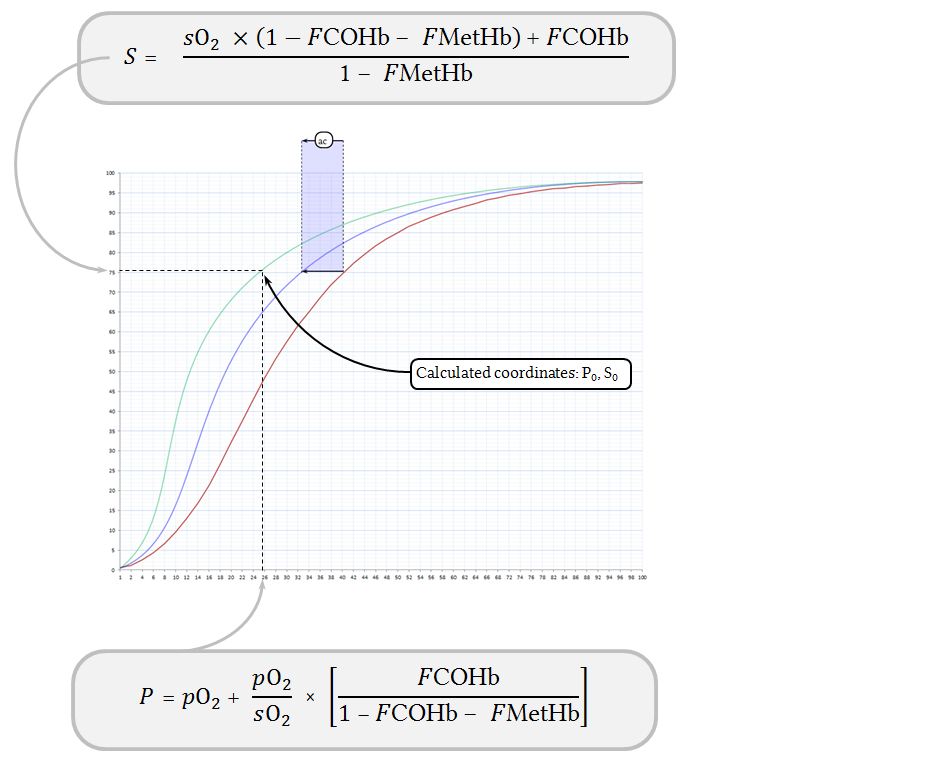

shift of the curve to coordinates p0s0

These calculated coordinates represent the actual measured relationship between oxygen/carbon monoxide saturation and tension. (ac+a6), nominated as (a) by Siggaard-Andersen, is the total shift of the curve at a standard temperature of 37°C; thus the green curve in the diagram above represents the shape of a combined oxygen/carbon monoxide and haemoglobin dissociation curve at 37°C, accounting for all of Bohr's effects.

The curve is now shifted by another notch to correct for whatever the actual patient temperature is, using the equation

b = 0.055 × (T- T°)

where b is the magnitude of the shift and is 37°C. Essentially, b changes by 0.055 for every degree difference.

So, now we have a shift due to temperature (b) and a shift due to everything else (a).

Now, one is finally able to plug these variables into the Tanh function. This will generate an oxygen/carbon monoxide dissociation curve which passes through a point which corresponds to directly measured variables from the blood sample.

Having arrived at a curve of some sort, one is now finally able to predict where the p50 will fall.

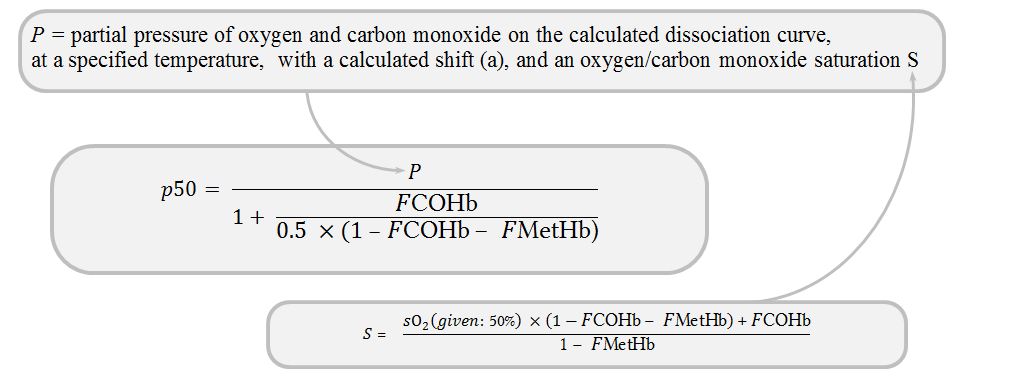

p50 equation

Voila.

Sources of inaccuracy in the derived p50 parameter

There are several issues one notes if one explores these equations.

Firstly, in the flat part of the curve (i.e. beyond an sO2 of 97%) the accuracy tends to flounder, as large changes to all the p50-influencing variables tend to only cause very small changes to the sO2.

Secondly, the lack of clarity regarding 2,3-DPG and foetal haemoglobin measurements makes it difficult to interpret the difference between p50 and p50st (i.e. is it or isn't it due to 2,3-DPG levels and FHbF?)

Thirdly, the model assumes that the effects of all the Bohr factors (eg. pH, 2,3-DPG etc) are all linear and additive, whereas in fact they are not. For example, the influence of 2,3-DPG changes with pH and temperature.

Lastly, it seems sulfahemoglobin plays no role in any of the calculations, but it certainly plays a role in moving the dissociation curve around (it produces a right-shift).

Thus, the ABG-derived p50 value is closer to an empirical measurement, but is still an error-prone mathematical construct.

Briefly, below is a summary of situations which may give rise to a change in p50. The influences on the shape of the curve are discussed at great length elsewhere, and

Increased p50: decreased Hb-O2 affinity; a right shift

In this situation, the decreased affinity of hemoglobin for oxygen improves the deposition of oxygen in the tissues, but impaires the extaction of oxygen from alveolar gas, and thus impaires the overall transport mechanism. In such circumstances improvements of alveolar oxygen content and V/Q matching may not result in any improvement in tissuen oxygen delivery.

Causes of a right shift in the oxygen-hemoglobin dissociation curve

Decreased p50: increased Hb-O2 affinity; a left shift

In this situation, the increased affinity of hemoglobin improves the absorption of oxygen from the capillaries, but degrades the rate of its deposition in the tissues. Tissue oxygen extraction becomes impaired, and so tissue hypoxia may exist in spite of a well-oxygenated blood volume.

Causes of a left shift in the oxygen-hemoglobin dissociation curve

  • Alkalosis
  • decreased PaCO2
  • Decreased temperature
  • Decreased 2,3-DPG (eg. in stored blood)

Unusual haemoglobin species can also alter this value if the "total" unfractionated hemoglobin is being examined. Foetal hemoglobin (FHb) methaemoglobin (MetHb) and carboxyhemoglobin (COHb) all increase the affinity of haemoglobin for oxygen, and will decrease the apparent p50 even if the "natural" hemoglobin p50 will remain the same. The arterial blood gas analyser will dutifully disregard these subtleties, and present you with an empirical p50 value for the blood sample you supplied, whatever mixture of freakish alien hemoglobin it contains. This was a trap set by the CICM Fellowship examiners in Question 6.2 from the second paper of 2010.

The relevance of p50 to the critically ill population

"Who gives a flying fuck", would yell the pragmatic intensivist, enraged by the general pfuffery of this increasingly academic discussion. "Who looks at that number anyway?" Indeed. Rarely if ever does an ICU doctor receive a phone call from emergency, ED staff specialist on the line wringing their hands with concern over an abnormal p50 value. However, this topic has attracted some attention from intensive care celebrities such as Myburgh and Worthley. Their investigation into this issue has revealed that critically ill patients on average have a higher oxygen affinity than the normals (p50 of 24.5 vs 26.6).

The implications of this are on oxygen delivery to tissues, which is ultimately the objective of all your resuscitation efforts. With a uselessly clingy haemoglobin, a heroic effort to restore normal oxygen saturation will not yield a satisfying improvement in the surrogate markers of tissue perfusion. This has the greatest influence in the context of massive transfusion, where one's organism is suddenly inundated with stored red cells near expiry, which have been chilled to 4°C, at a pH of 6.0 or so, and totally depleted of 2,3-DPG. In this situation, the p50 suddenly looks important. Sure, you might feel confident looking at the haemoglobin result ("look, its 80, they aren't bleeding any more - well done everybody") but in actual fact all of that haemoglobin is almost totally useless, and will remain so while the storage-damaged red cells gradually recover their function.
