The normal IABP waveform



There is a certain normal waveform to be expected from the IABP, when it is correctly timed.

A good overview of what happens can be found in an educational propaganda document by Arrow.

The normal IABP balloon waveform

The balloon itself has a pressure transducer, and it generates a waveform.

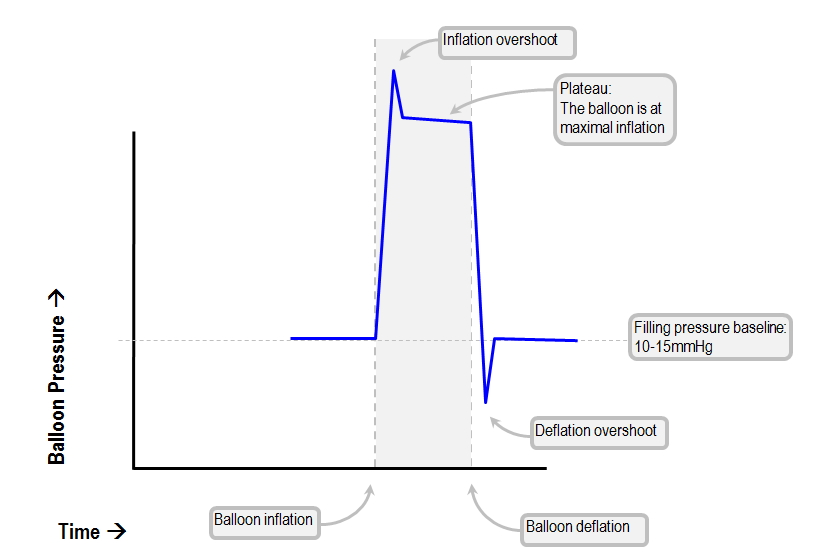

balloon waveform

About 40 milliseconds before the dicrotic notch, the IABP balloon inflates. This is timed with the ECG, usually - the end of the T wave is used as a marker that systole has finished. Why the delay? because even the best IABP pistons require a few milliseconds to shoot some helium into the balloon. Balloon deflation (which is also very rapid) is timed with the R wave.

The normal IABP blood pressure waveform

IABP waveform

The aortic pressure waveform generated by the deflation and inflation of the balloon demonstrates some of the hemodynamic effects of IABP counterpulsation.

ECG triggering of the IABP

The waveform in the diagram above is slightly exaggerated, in order to simplify the explanations.

In that diagram the graphical representation of the events occurring around the balloon deflation are "stretched" slightly, giving the impression that there is a long time between the deflation of the balloon and the beginning of the assisted systole.

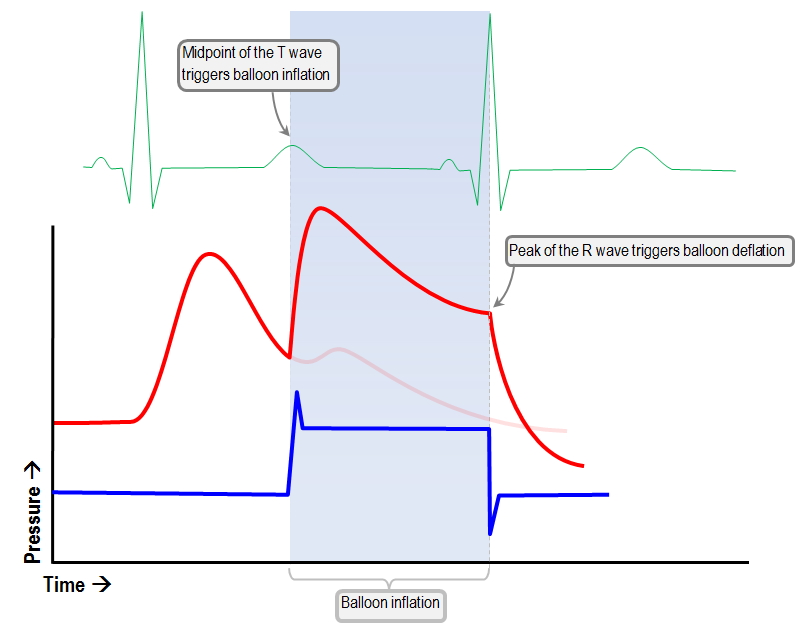

ECG triggers of IABP inflation and deflation

Now, the diagram above is perhaps even more stylised, and is far from being a faithful representation of reality.

However, the basic principles are there.

Inflation of the balloon is triggered by the beginning of diastole, which correlates with the middle of the T-wave. The balloon is timed to deflate at the very end of diastole. This correlates with the R-wave on the ECG, and this is the most commonly used trigger for balloon deflation.

In atrial fibrillation, the ECG trigger is timed to deflate on the R wave as usual, but the R-R interval (which governs the timing of the balloon remaining inflated) varies. The R wave timing can also be of the  "pattern" type, where normal QRS morphology is expected, or "peak" type where - if your QRS is monstrously misshapen - the IABP will choose the maximum voltage peak and use that instead.

Other methods of triggering the IABP

Apart from ECG triggering, other methods exist:

Pacemaker timing: this is a well-practised technique (it seems to have first been described in a letter to the editor of The Annals of Thoracic Surgery by John Kratz, 1986). In short, there may be situations where the ECG measurement is either unreliable or unfeasible (eg. your open chest patient has literally no surface for the electrodes, or they are covered in a film of sweat which causes them to fall off). It is possible to slave the pump to the temporary pacemaker pulse generator, to time the deflation of the balloon according to the pacemaker pulse instead of the R wave. Clever modern pumps have "atrial" and "ventricular" pacing trigger settings, with appropriate timing offsets.

One minor issue with this is the possibility that you don't want the pump to be pacing-timed, but it forms a treasonous alliance with the pacemaker, against you and the patient. This can happen when you turn off the high-pass filter on your ECG monitor to see the pacing spikes (Reade, 2007). The IABP then mistakes these for R wave complexes and deflates the balloon. The resulting early deflation is usually not an issue because the ventricular pacing spike and the QRS are fairly close together. However, if the IABP decides to time deflation with the atrial pacing spike, all the benefits of systolic augmentation can be lost.

Arterial pulse timing is for situations when the patient is not paced, nor is the ECG any good. It is a poor second to ECG timing because of a noticeable delay to the balloon inflation. Ideally you'd expect the balloon to start inflating about 40 msec before the dicrotic notch (to compensate for the fact that even helium doesn't flow instantly). By using pressure trigger, one relies on the propagation of the pressure wave, which - though brisk, ~10m/sec - is not as fast as the electrical signals. The delay was measured by Pantalos et al (2003), who simultaneously measured the aortic root and the IABP machine-end lumen pressure. Delays ranging from 60-119 msec were seen. l This has the effect of decreasing diastolic augmentation and increasing afterload, which could be disastrous.

Asynchronous timing is also an option. The pump defaults to a regular rate of 80 bpm, irrespective of what the myocardium is doing. In many ways this is the philosophical opposite of "timing", i.e. the inflations aren't timed to the cardiac cycle in any sense. Obviously this is only useful if there is no cardiac cycle, i.e. the patient is asystolic.

References

Schreuder, Jan J., et al. "Beat-to-beat effects of intraaortic balloon pump timing on left ventricular performance in patients with low ejection fraction." The Annals of thoracic surgery 79.3 (2005): 872-880.

Hanlon-Pena, Patricia M., and Susan J. Quaal. "Intra-aortic balloon pump timing: review of evidence supporting current practice." American Journal of Critical Care 20.4 (2011): 323-334.

Krishna, Murli, and Kai Zacharowski. "Principles of intra-aortic balloon pump counterpulsation." Continuing Education in Anaesthesia, Critical Care & Pain9.1 (2009): 24-28.

Weber, K. T., J. S. Janicki, and A. A. Walker. "Intra-aortic balloon pumping: an analysis of several variables affecting balloon performance." Transactions-American Society for Artificial Internal Organs 18 (1972): 486. - cited in the above article, but sadly not available in full text or abstract, anywhere!

Fuchs, RICHARD M., et al. "Augmentation of regional coronary blood flow by intra-aortic balloon counterpulsation in patients with unstable angina."Circulation 68.1 (1983): 117-123.

Markus, Marcello Ricardo Paulista, et al. "Effects of smoking on arterial distensibility, central aortic pressures and left ventricular mass." International journal of cardiology (2013).

GOLD, HERMAN K., et al. "Intraaortic balloon pumping for ventricular septal defect or mitral regurgitation complicating acute myocardial infarction."Circulation 47.6 (1973): 1191-1196.

Kratz, John M. "Intraaortic Balloon Pump Timing Using Temporary Myocardial Pacing Wires." The Annals of thoracic surgery 42.1 (1986): 120.

Reade, M. C. "Temporary epicardial pacing after cardiac surgery: a practical review: Part 2: Selection of epicardial pacing modes and troubleshooting." ANAESTHESIA-LONDON- 62.4 (2007): 364.

Papaioannou, Theodoros G., and Christodoulos Stefanadis. "Basic principles of the intraaortic balloon pump and mechanisms affecting its performance." ASAIO journal 51.3 (2005): 296-300.

Pantalos, G. M., et al. "Intraaortic Balloon Pump (IABP) Timing Errors in Adult Patients." Asaio Journal 49.2 (2003): 155.
